Pre-Trained Masked Image Model for Mobile Robot Navigation

Vishnu Dutt Sharma, Anukriti Singh, Pratap Tokekar,
University of Maryland, College Park

Abstract

2D top-down maps are commonly used for the navigation and exploration of mobile robots through unknown areas. Typically, the robot builds the navigation maps incrementally from local observations using onboard sensors. Recent works have shown that predicting the structural patterns in the environment through learning-based approaches can greatly enhance task efficiency. While many such works build task-specific networks using limited datasets, we show that the existing foundational vision networks can accomplish the same without any fine-tuning. Specifically, we use Masked Autoencoders, pre-trained on street images, to present novel applications for field-of-view expansion, single-agent topological exploration, and multi-agent exploration for indoor mapping, across different input modalities. Our work motivates the use of foundational vision models for generalized structure prediction-driven applications, especially in the dearth of training data.

Approach

We use a pre-trained Masked Autoencoder (MAE), trained on ImageNet dataset, to increase the FOV of the top-down images in various settings. The additional field is used as a masked region in the input to MAE and the output of the MAE is added to the original masked input. We vary the extent of masking to study the efficacy of MAE prediction.

We evaluate prediction quality on both indoor and outdoor scenes. Robotic tasks often rely on a variety of modalities for tasks. Keeping this in mind, we study 3 types of input modalities: (1) RGB images, (2) Semantic segmentation maps, and (3) Binary maps (as proxy for occupancy map).

We use VALID dataset for outdoors and AI2-THOR for indoor images in our evaluation.


FoV Expansion (Qualitative Results)

RGB Images

MAE is pre-trained on RGB images with the dataset consisting mainly of street-view/first-person view images. The results here answer if they can be used effectively on top-down images.

Outdoors 1.17x Expansion

Outdoors 1.40x Expansion

Outdoors 1.75x Expansion

Indoors (1.17x, 1.40x, and 1.75x FoV Expansion)

Semantic Segmentation Maps

MAE is pre-trained on RGB images and can work well on top-down RGB images as well. We further examine if this performance can be repeated on semantic segmentation maps by treating them as RGB images.

Outdoors 1.17x Expansion

Outdoors 1.40x Expansion

Outdoors 1.75x Expansion

Indoors (1.17x, 1.40, and 1.75x FoV Expansion)

Binary Maps

Binary maps are skin to occupancy maps and represent a low-fidelity representation of navigation maps. We use them as RGB images as well and find out MAE performs on them. In the binary maps shown below we use bright regions to represent navigable regions.

Outdoors 1.17x Expansion

Outdoors 1.40x Expansion

Outdoors 1.75x Expansion

Quantitative Results

Table 1: Increasing the FOV in RGB images


Environment     Expansion     FID     SSIM     PSNR     MSE
1.17x 17.83 0.94 27.76 13.76
Indoor 1.40x 41.79 0.86 22.23 32.42
1.75x 76.59 0.78 19.18 52.98
1.17x 53.66 0.84 26.38 33.59
Outdoor 1.40x 77.91 0.69 22.79 49.91
1.75x 116.09 0.55 19.98 67.80


Table 2: Increasing the FOV in Semantic segmentation maps


Environment   Expansion     mIoU     FID     SSIM     PSNR
1.17x 0.86 43.48 0.94 23.06
Indoor 1.40x 0.55 75.42 0.84 17.33
1.75x 0.34 110.01 0.78 14.90
1.17x 0.90 42.63 0.94 25.96
Outdoor 1.40x 0.73 73.03 0.86 21.39
1.75x 0.57 118.56 0.79 18.80


Table 3: Increasing the FOV in Outdoors Binary maps


Expansion     mIoU     FID     SSIM     PSNR
1.17x 0.90 51.87 0.95 30.36
1.40x 0.78 88.44 0.76 22.05
1.75x 0.64 120.94 0.56 17.81

Semantics-Guided Inpainting

MAE are trained similar inpainting networks, and thus have the potential for inpainting. We use this capability to present a use-case where it could be used to remove unwanted objects from top-down images (RGB, segmentation, or binary maps). This could be useful for a team of heterogeneous robots (UAV-UGB), or for offline data curation.

Uncertainty-based Exploration

Uncertainty estimation in predictions can be used for safe deployemnt and guided exploration and navigation of mobile robots. MAEs are deterministic networks and are not trained with dropouts. We extract prediction uncertainty in MAEs by perturbing input images with random noise (similar to adverserial attack) and quntify the average variace across channels as the uncertainty.

The videos below show some exmaples of the four algortihms used in our paper.

Lawnmower devied the environement in contiguous scanlines and assigns a robot to each.

KMeans-U uses KMeans over unexplored locations and assigns the robots to the cluster centers.

KMeans-R uses KMeans over unexplored locations and assigns the robots to the cluster centers. Addionally, it makes the robots move to the center after the ckuster centers stop updating/moving.

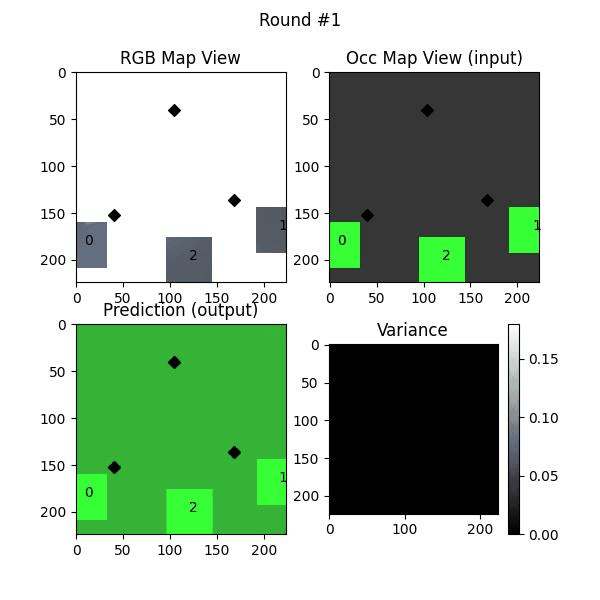

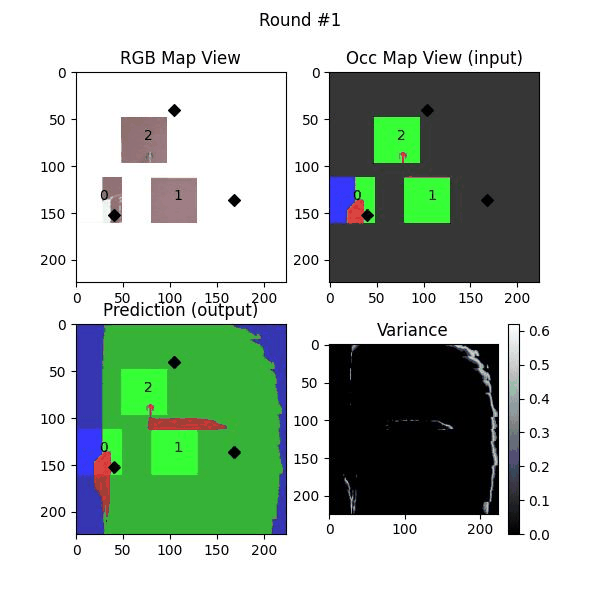

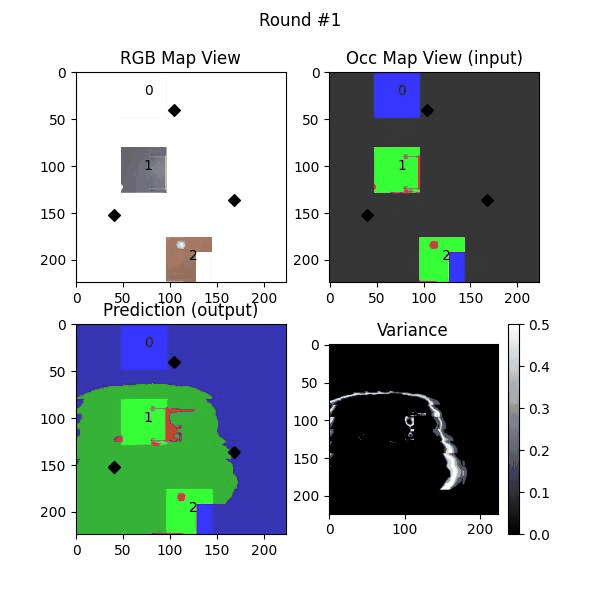

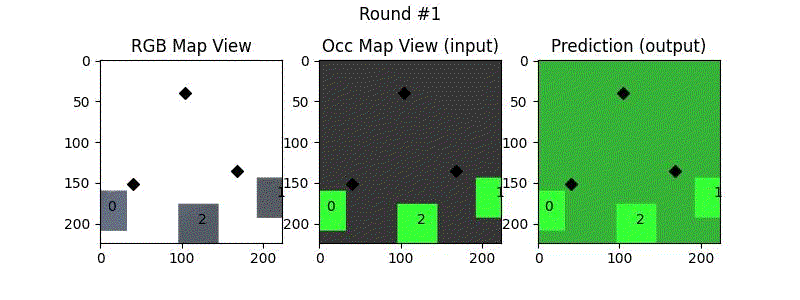

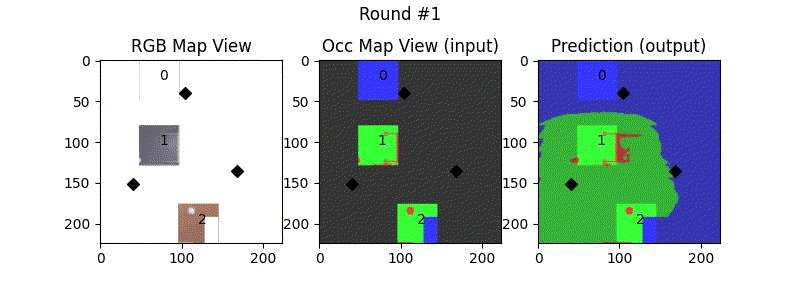

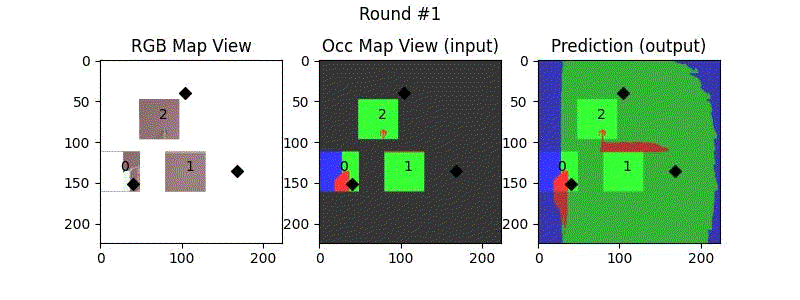

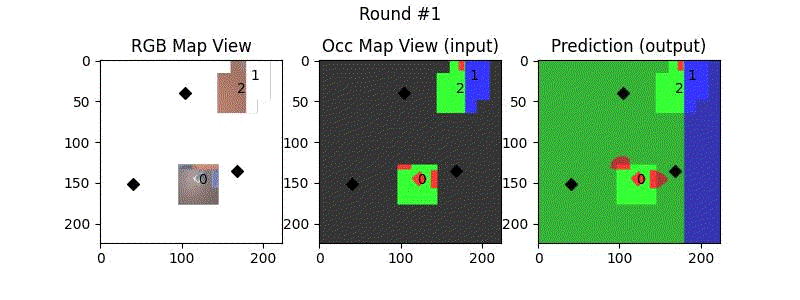

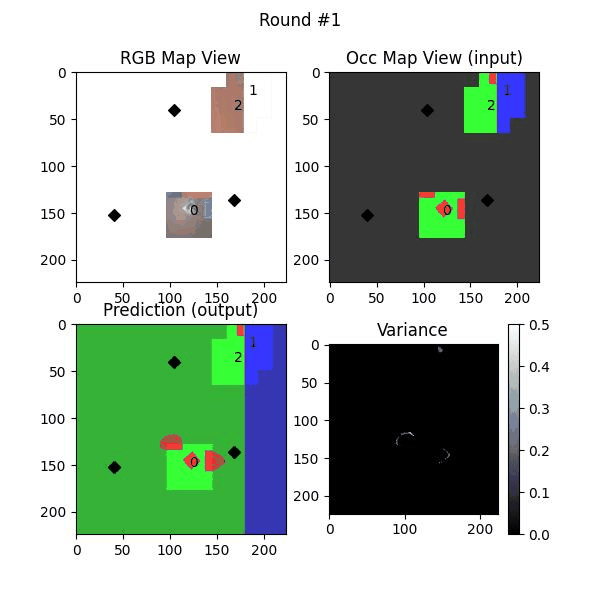

KMeans-U2 uses KMeans over unexplored locations as well as locations with non-zero variance and assigns the robots to the cluster centers.

Lawnmower

KMeans-U

KMeans-R

KMeans-U2










Real-World Results

We try increasing FOV over the costmap generated by a Hokuyo scanner (270-degrees FOV) mounted on a Turtlebot2 (thr robot is moving towards right in thr images below). The results are encouraging and will be explored further in future.
